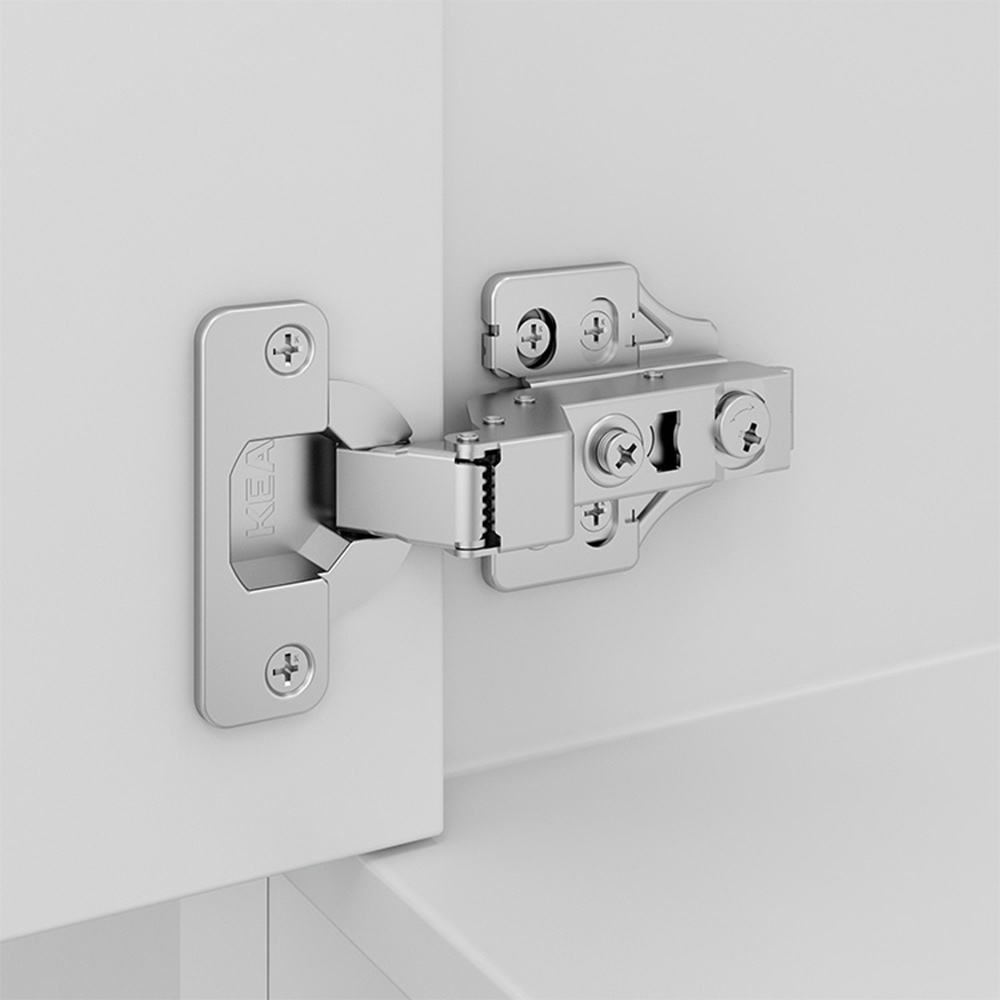

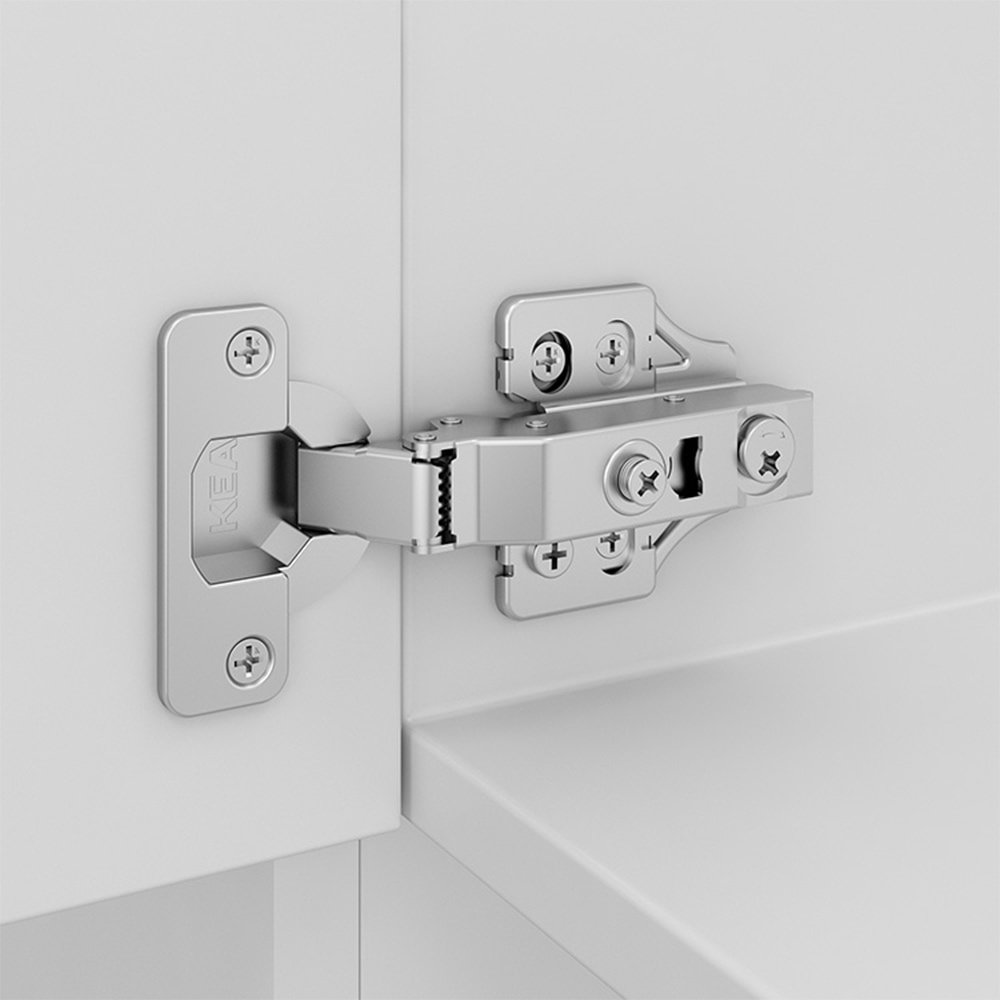

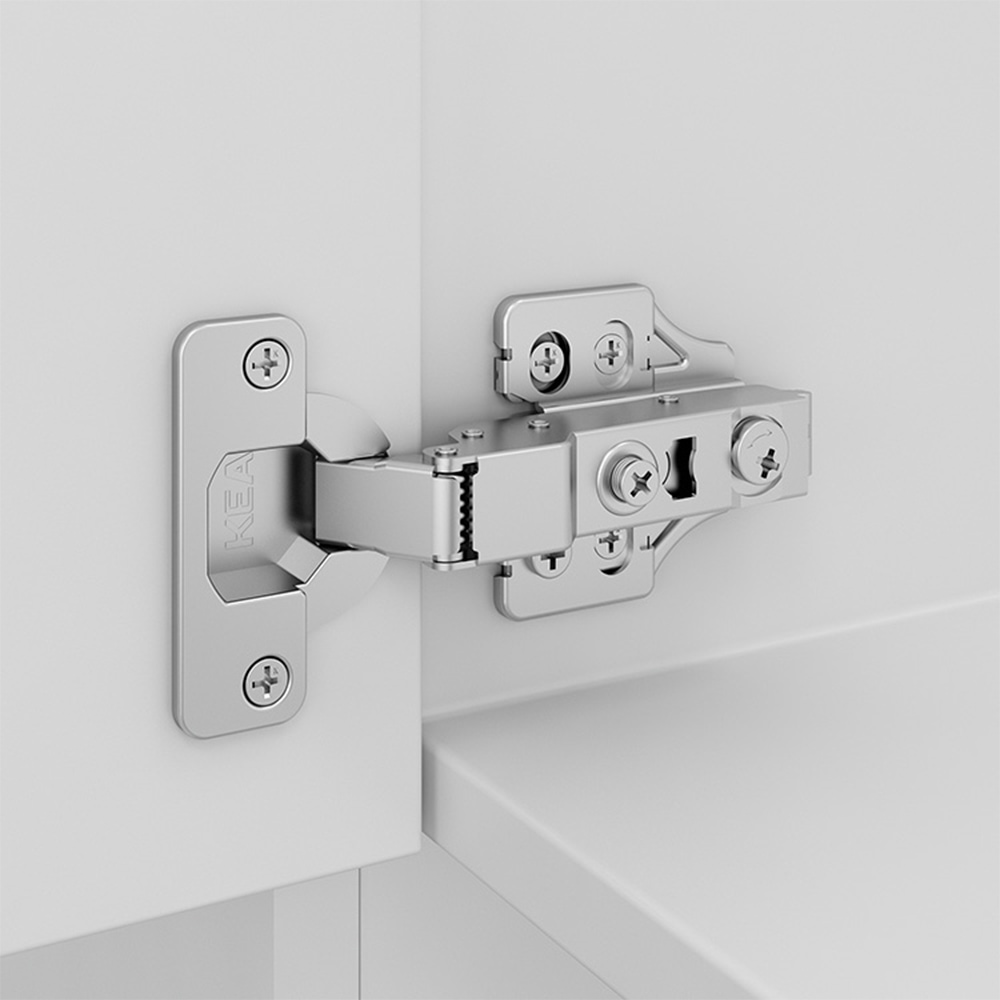

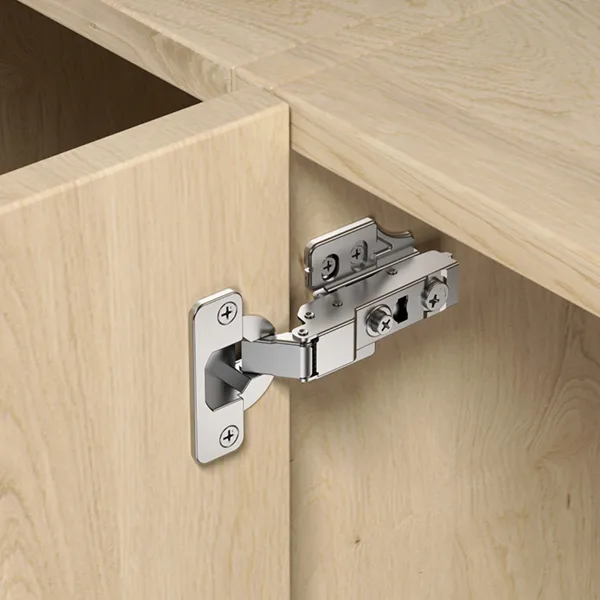

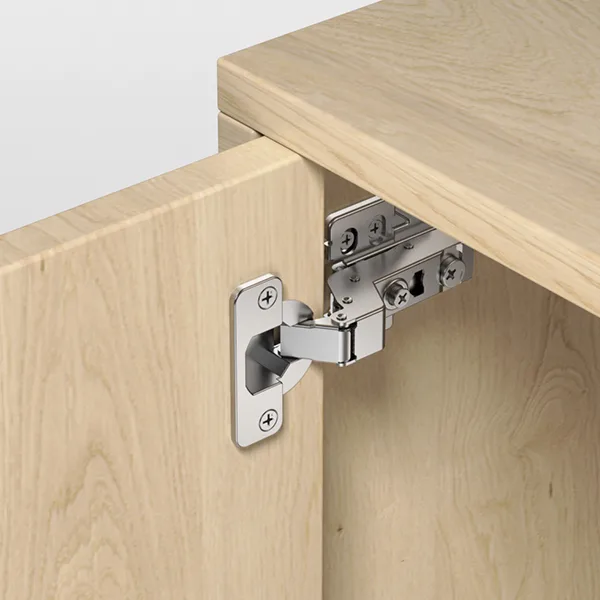

Furniture Cabinet Door Hinge (One-way) F16

Furniture Cabinet Door Hinge (One-way) F16

Type: furniture soft closing cabinet hinge

Application: kitchen, bathroom, home office, living room, bedroom, dining room etc.

Opening Angle: 105°

Diameter of Hinge Cup: Ø35mm

Depth of Hinge Cup: 11.3mm

Door Thickness: 14-22mm

Door(K) Dimension: 3-7mm

Hole Pitch: 45mm / 48mm / 52mm

Hinge Cup: Iron with nickel plating

Hinge Arm: Iron with nickel plating

Hinge Plate: Iron with nickel plating


PRODUCT Description

* 3D Adjustment

Easily adjust cabinet door from six directions even after having door fixed to the panel.

* Clip-on System

Fix the door to cabinet with spring fastener and only remove the door by gentle pressing the spring

fastener, which is easy to install and disassembly.

* Double Surface Plating

With copper and nickel plating, it can pass 48 hours salt spray test,which effectively prevent rust.

* Large Adjustment Range, Big overlay

You can adjust the door position or remove the door even after installation, it is suitable for all kind of customized furniture.

* Good Load Capacity, Long Service Life

The opening and closing life is more than 80,000 times. Product meets QB/T2189-2013 executive standard and EN15570 EU executive standard.
