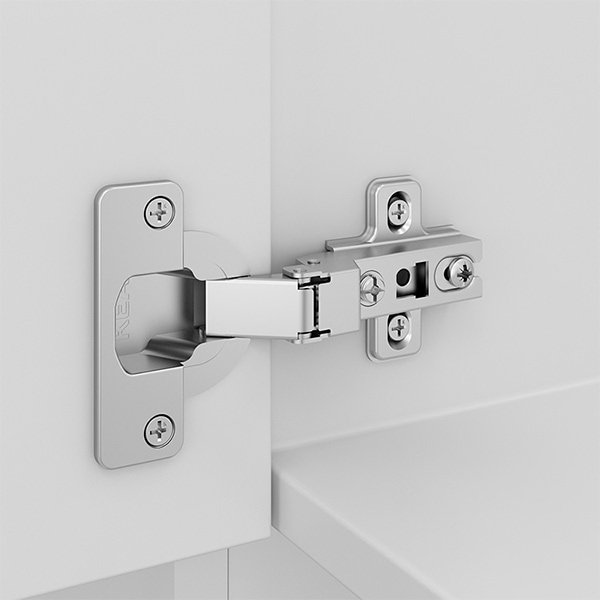

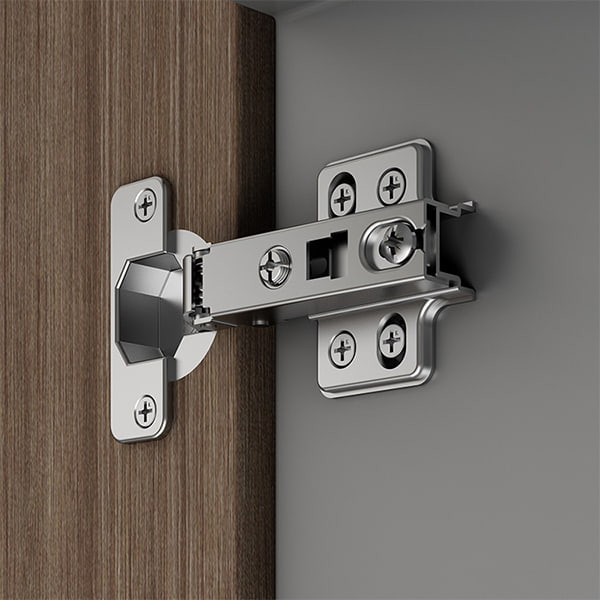

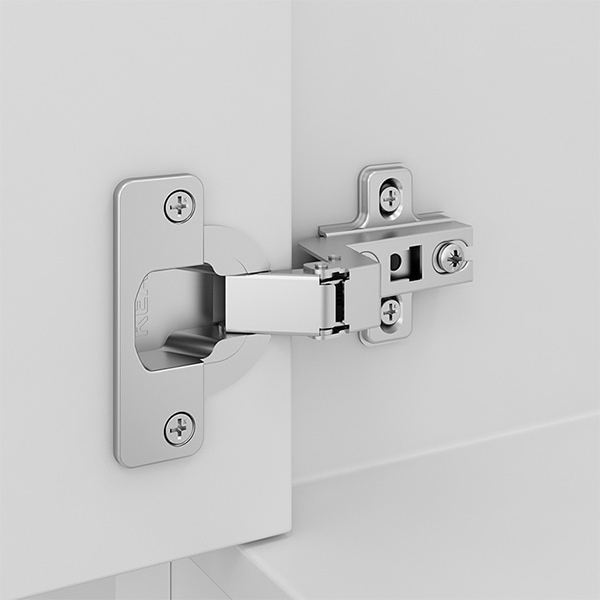

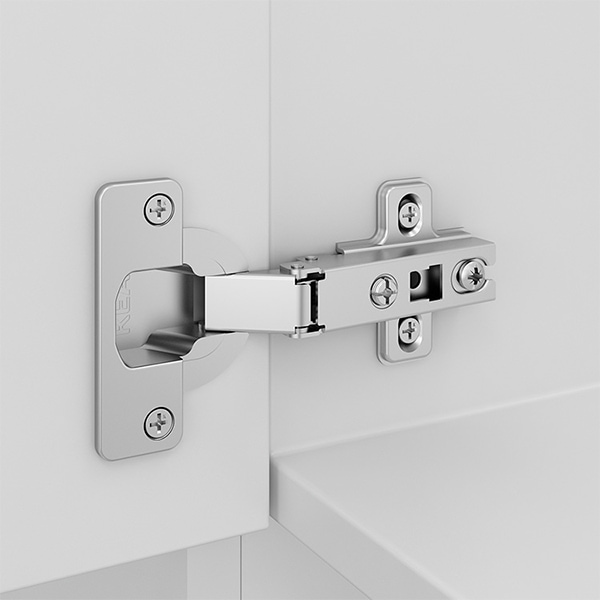

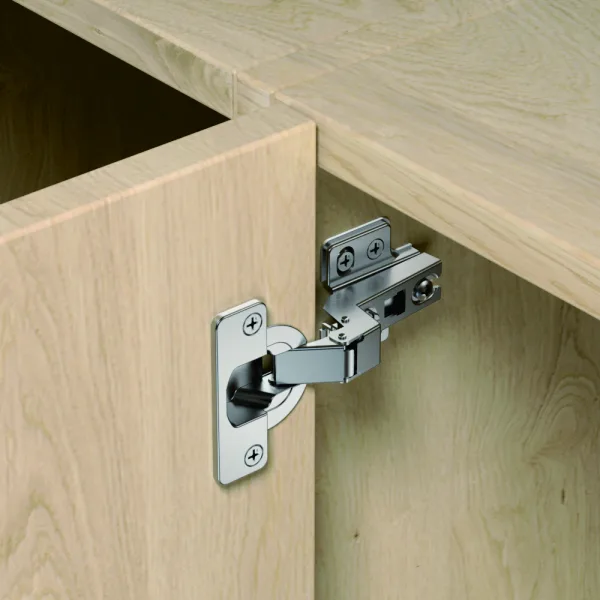

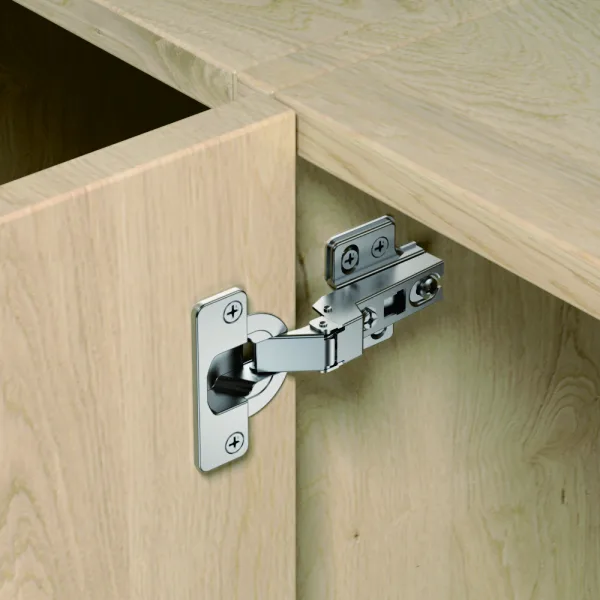

Slide-on Regular Furniture Cabinet Thick Door Hinge(Two-way) B07

Slide-on Regular Furniture Cabinet Thick Door Hinge(Two-way) B07

Description

Type: furniture soft closing cabinet hinge

Application: kitchen, bathroom, home office, living room, bedroom, dining room etc.

Opening Angle: 95°

Diameter of Hinge Cup: Ø40mm

Depth of Hinge Cup: 12mm

Door Thickness: 18-25mm

Door(K) Dimension: 3-7mm

Hole Pitch: 52mm

Material

Hinge Cup: Iron with nickel plating

Hinge Arm: Iron with nickel plating

Hinge Plate: Iron with nickel plating

DownLoad

PRODUCT Description

* Double Surface Plating

With copper and nickel plating, it can pass 48 hours salt spray test,which effectively prevent rust.

* Connection Parts in Hardness Processing

The connection parts in heat treated have high hardness, it can increase wear resistance, toughness and fatigue strength to extend hinge life.

* Two Dimensional Screw

The adjustable screw is used for distance adjustment,so that both sides of the cabinet door can be more suitable.
