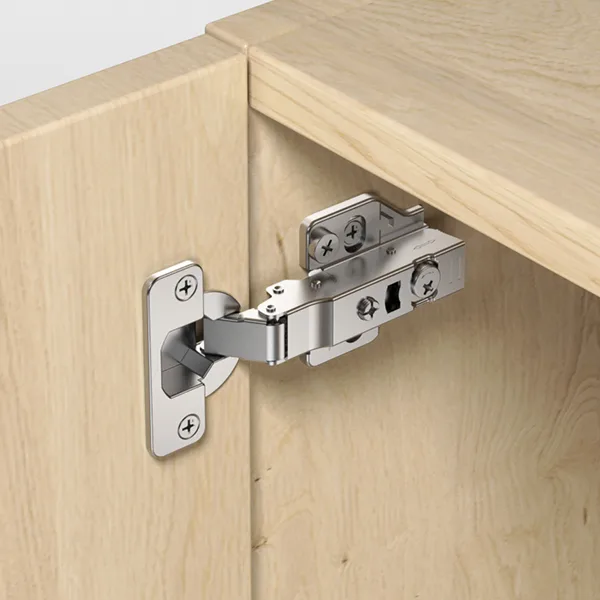

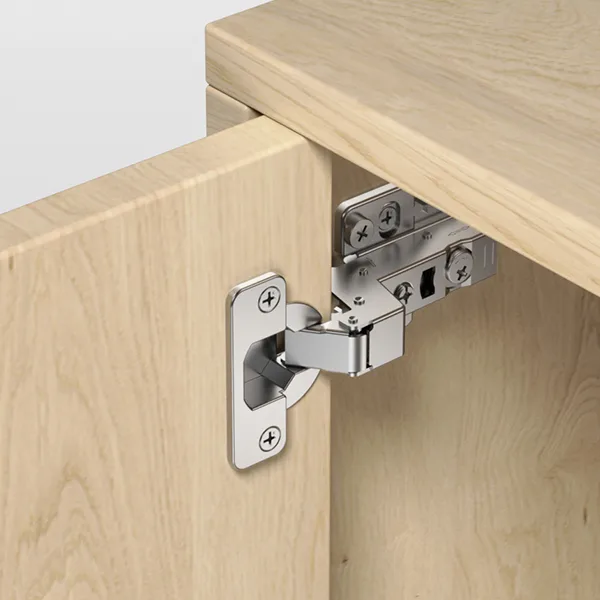

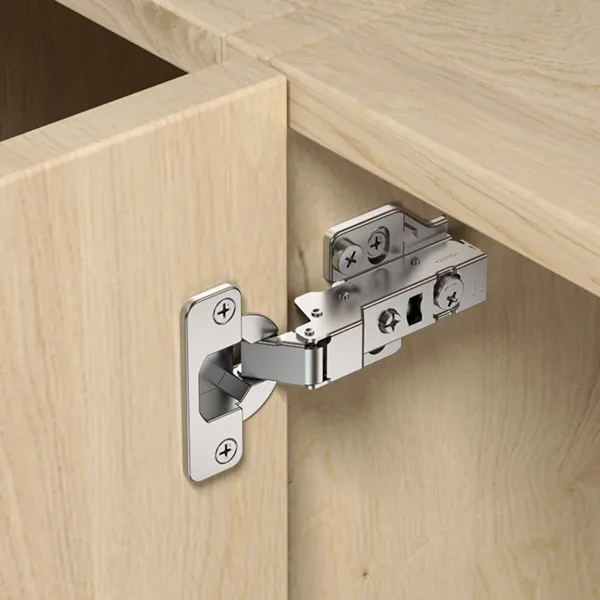

Clip-on 3D Adjustment Soft-closing Furniture Cabinet Door Hinge (One-way) E16

Description

Type: furniture soft closing cabinet hinge

Application: kitchen, bathroom, home office, living room, bedroom, dining room etc.

Opening Angle: 105°

Diameter of Hinge Cup: Ø35mm

Depth of Hinge Cup: 11.3mm

Door Thickness: 14-22mm

Door(K) Dimension: 3-7mm

Hole Pitch: 45mm / 48mm / 52mm

Material

Hinge Cup: Iron with nickel plating

Hinge Arm: Iron with nickel plating

Hinge Plate: Iron with nickel plating

DownLoad

* 3D Adjustment

Easily adjust cabinet door from six directions even after having door fixed to the panel.

* Clip-on System

Fix the door to cabinet with spring fastener and only remove the door by gentle pressing the spring fastener, which is easy to install and disassembly.

* Double Surface Plating

With copper and nickel plating, it can pass 48 hours salt spray test，which effectively prevent rust.

* Connection Parts in Hardness Processing

The connection parts in heat treated have high hardness, it can increase wear resistance, toughness and fatigue strength to extend hinge life.
