Quality Standards For Furniture Hinge

  • By:Keahardware
  • Date:2022/04/20

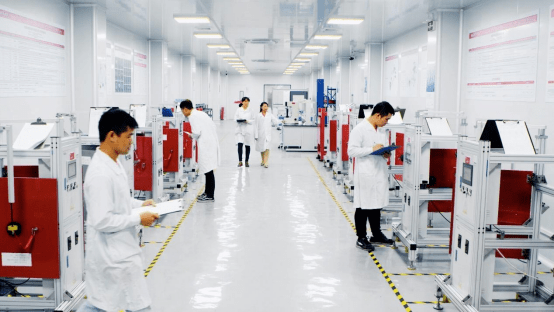

Building an ideal home has become an important standard to judge the quality of a family’s life, and the pursuit of high-end product quality has become an important responsibility of KEA Xiangxing. As cabinet hinges specialist, KEA Xiangxing always taking high quality as the core. In recent years, KEA Xiangxing has invested heavily to establish a new product experimental center with benchmarking European and American standards to control quality for all KEA wardrobe hinges.





Quality Control Executive Standard,DIN EN EU Executive Standard for Furniture Hinge

  • ANSI/BHMA American National Executive Standard for Cabinet Hardware
  • ANSI/KCMA American National Standard for Kitchen and Bathroom Cabinet Performance and Construction
  • KS F 4538 Korea Executive Standard for Cup Type Hinge
  • QB/T 2189-2013 China Executive Standard for Furniture Hardware Cup-shaped Concealed Hinge
  • QB/T 2531-2010 China Executive Standard for Kitchen Furniture
  • T/CNHA 1002-2016 Group Executive Standard for Soft Closing Concealed Hinge for Home Use
  • GB/T 10125 China Executive Standard for Artificial Atmosphere Corrosion Test
  • GB/T 6461 China Executive Standard for Rating after The Corrosion Test
  • ISO 6270 International Executive Standard for Condensate Climate Test







Test Item

Safety Overload Test:

Vertical static overload: Load 20kg weight at the designated position of the door, and then manually open and close the door slowly (back and forth) 10 times.

Horizontal static overload: Open the door to the maximum angle, load 60N thrust vertically with a measurer at the designated door position, stay for 10 seconds each time, and repeat 10 times.



Function Test:

The first time self-closing force: Measure at 0.5mm from the designated position of the fully closed door, and open the test door at the designated position with a measurer. The self-closing force shall not be less than 0.5N.

The first time opening force and closing force: At the measurement point of the designated door, measure the opening force and closing force of the door with a measurer. The opening force and closing force shall not be greater than 20N.

The first time vertical static overload: Load 15kg weight at the designated position of the door, and then manually open and close the door slowly (back and forth) 10 times.

The first time horizontal static overload: open the door to the maximum angle, load 30N thrust vertically with a measurer at the designated door position, stay for 10 seconds each time, repeat 10 times





Door Slammed: When the door is closed, put a cable at the designated position on the back of the door vertically and hang 5kg weight. Make sure that at 10mm from the door fully closed, the load should be held at a distance of 300mm or the distance required to close door at 30°, whichever is less. The soft closing cabinet hinge shall be repeated 100 times.

Confirmation of the datum point of door sagging: Before the durability test, the datum point should be confirmed on the closed door, and the datum point should be at the designated position of the door, and make record after measurement

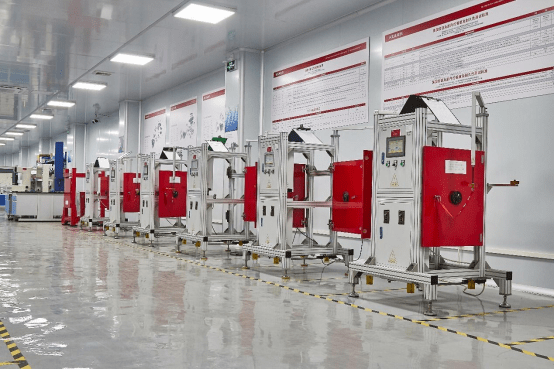

Durability: load 1kg weight on both sides of the door at the designated position, and the door must reach 7.5kg weight, and carry out 50000 cycles for opening and closing life test

Standard deviation of door sagging amount: After durability test, and remove two 1kg weights, it should be measured at the confirmed reference point. The measurement accuracy is ±0.1mm, and the sagging amount shall not exceed 0.5% of the door width.

The second time vertical static overload: Load 15kg weight at the designated position of the door, and then manually open and close the door slowly (back and forth) 10 times.

The second time horizontal static overload: Open the door to the maximum angle, load 30N thrust vertically with a measurer at the designated door position, stay for 10 seconds each time, and repeat 10 times.

The second time self-closing force: Measure at 0.5mm from the designated position of the fully closed door, and open the test door at the designated position with a measurer. The self-closing force shall not be less than 0.5N

The second time opening force and closing force: at the measurement point of the designated door, measure the opening force and closing force of the door with a measurer. The opening force and closing force shall not be greater than 20N.

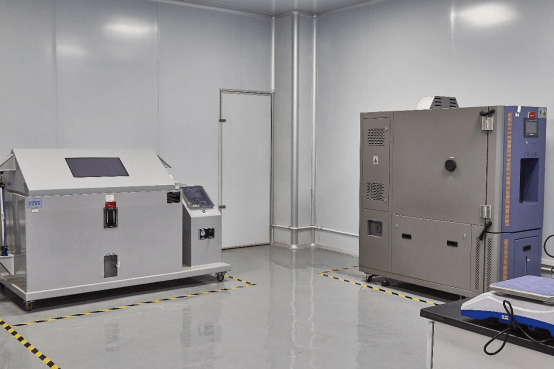

Artificial atmosphere corrosion salt spray test:

Perform neutral salt spray test according to GB/T10125 and GB/T6461 executive standards. The test time is more than 48 hours, and the rating after the test is above level 9.







KEA wardrobe hinges can pass the test and certification of SGS of Switzerland and ANSI/KCMA of USA etc.Behind every 1% progress is the pursuit of 100% quality. This is a monologue of ingenuity and also the original intention of KEA Xiangxing. To meet the demand of market for top hinge kitchen cabinet, KEA Xiangxing has been constantly changing and keeping excellence.
