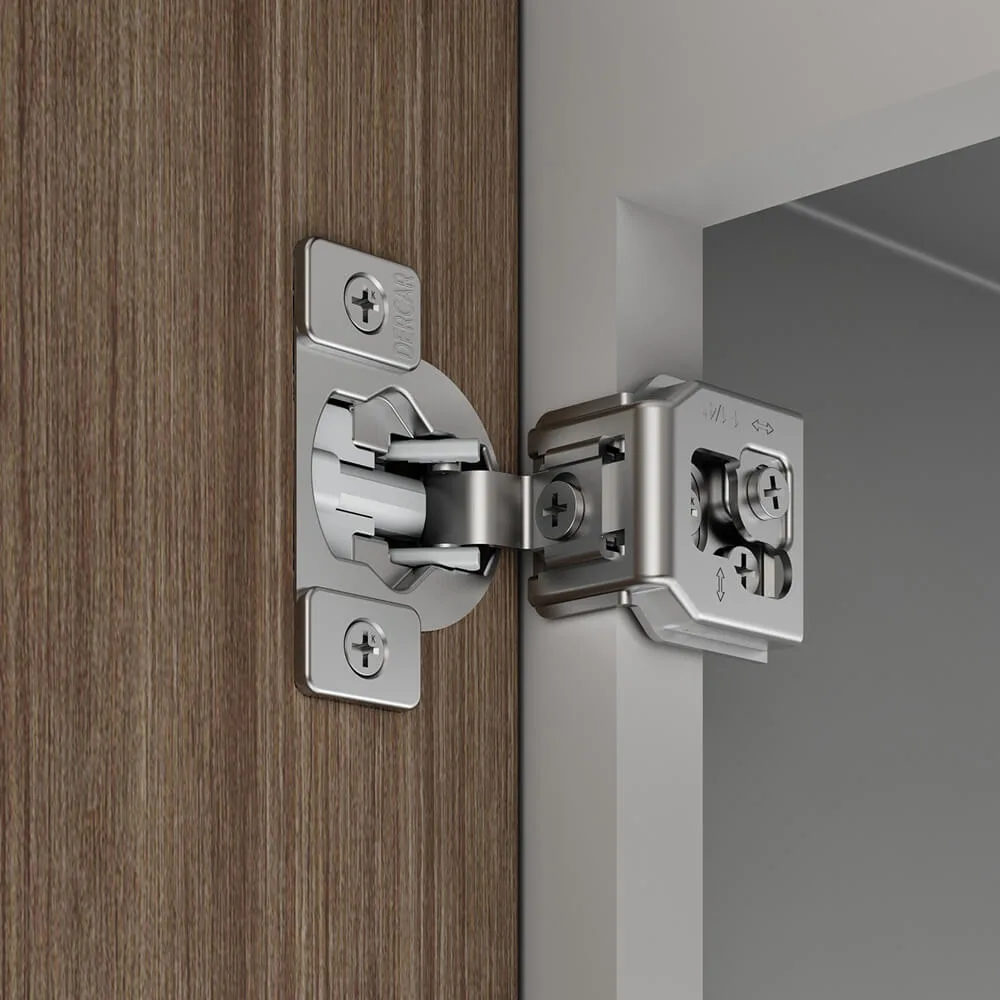

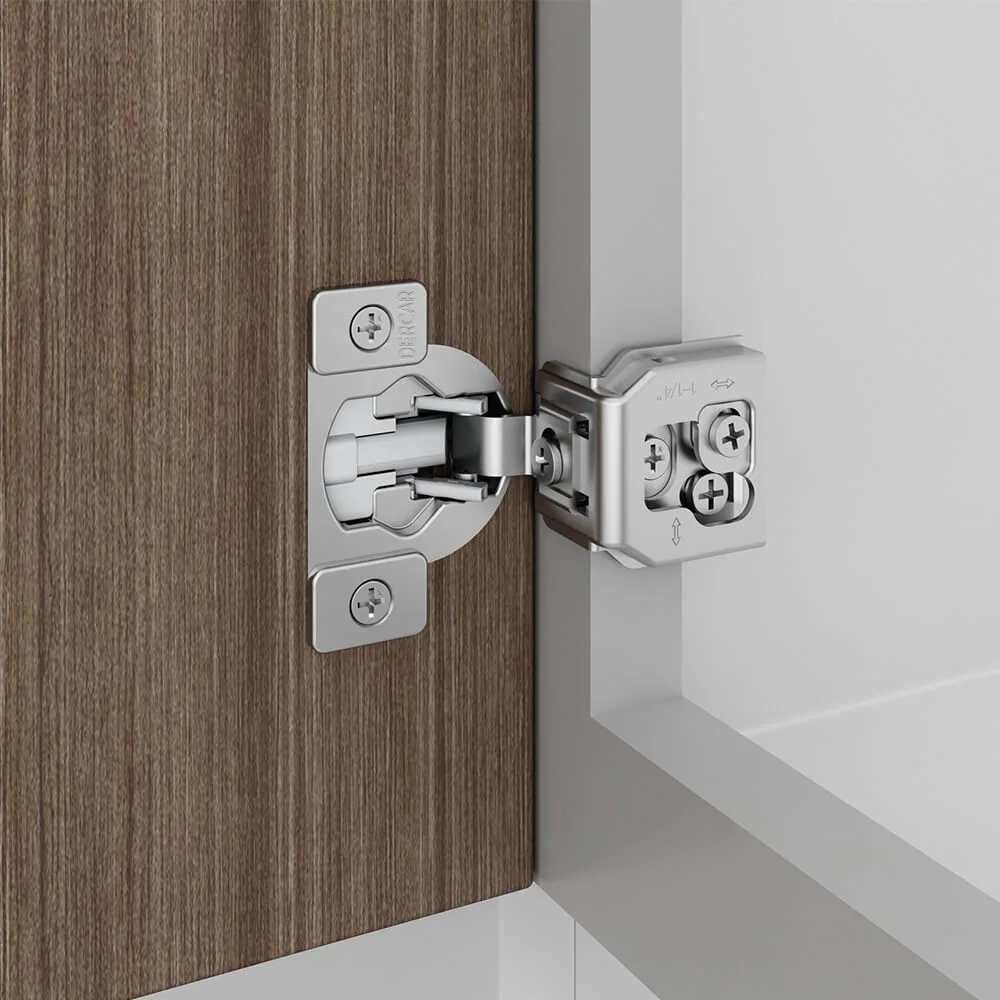

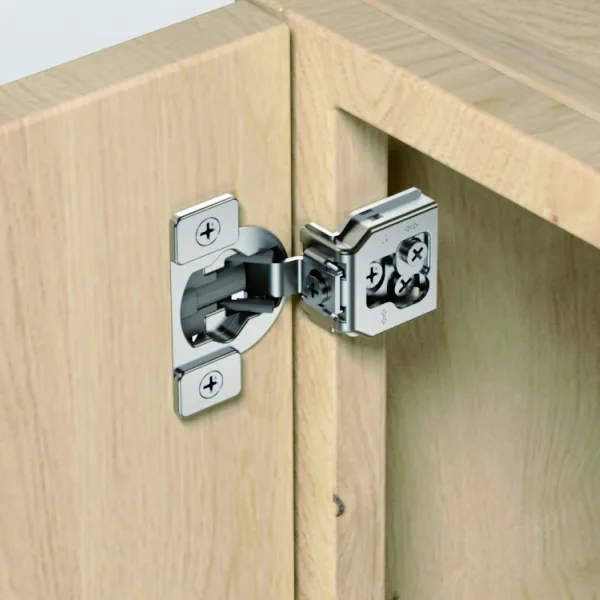

US-style 3D Adjustment Short Arm Soft Closing Furniture Cabinet Hinge(One-way)K311

Description

Type: US-style furniture cabinet door hinge
Application: kitchen, bathroom, home office, living room, bedroom, dining room etc.
Opening Angle: 105°                     Diameter of Hinge Cup: 35mm
Depth of Hinge Cup: 11.3mm        Door Thickness: 14-20mm
Door(K) Dimension: 2.5-5mm        Hole Pitch: 45mm

Material

Hinge Cup: Iron with nickel plating
Hinge Arm: Iron with nickel plating
Hinge Plate: Iron with nickel plating

DownLoad

PRODUCT Description

Double Surface Plating
With copper and nickel plating, it can pass 48 hours salt spray test, which effectively prevent rust.

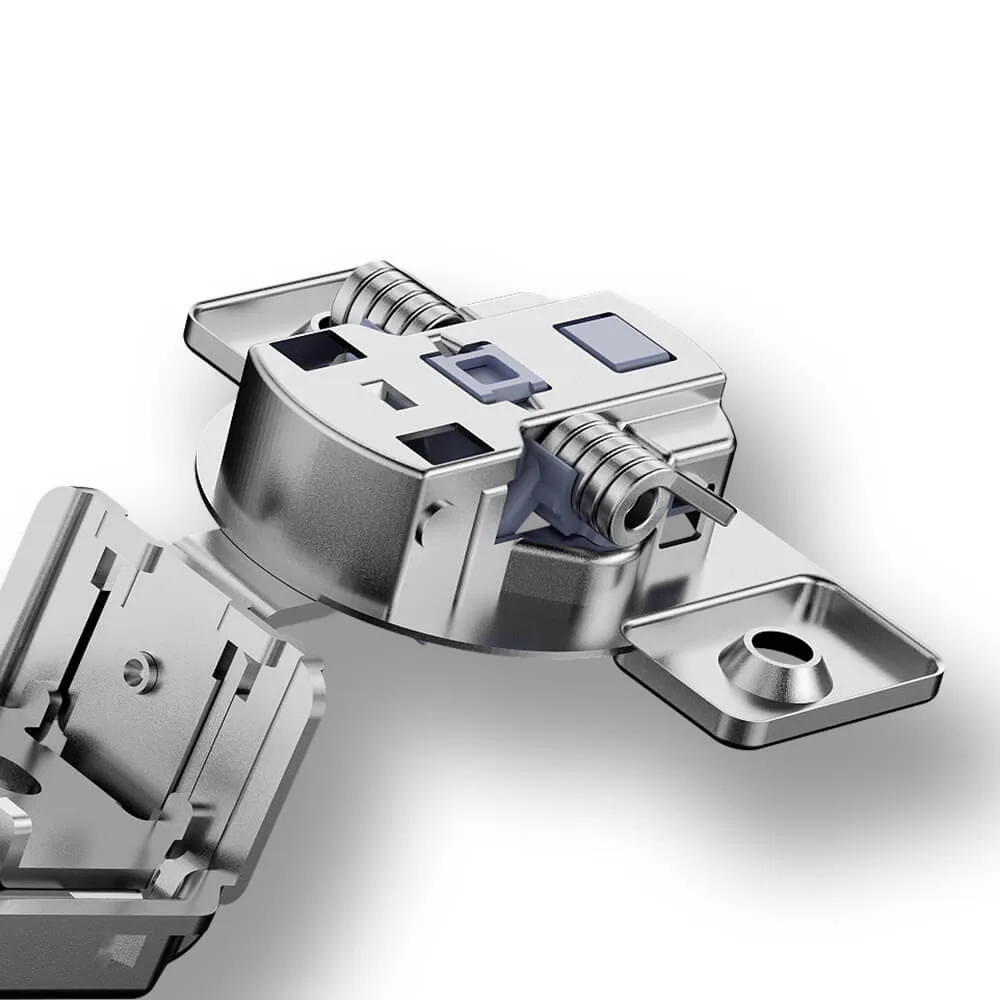

Connection Parts in Hardness Processing
The connection parts in heat treated have high hardness, it can increase wear resistance, toughness and fatigue strength to extend hinge life.

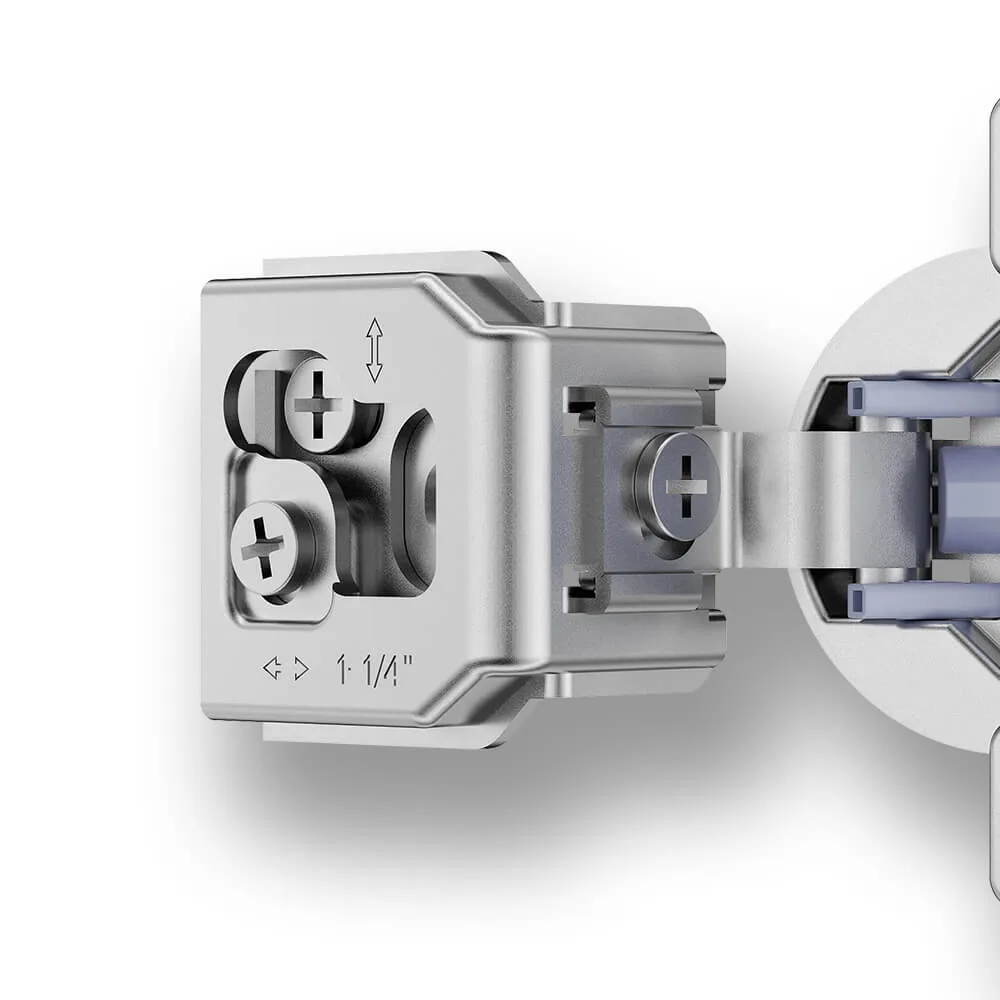

3D Adjustment
Easily adjust cabinet door from six directions even after having door fixed to the panel.
