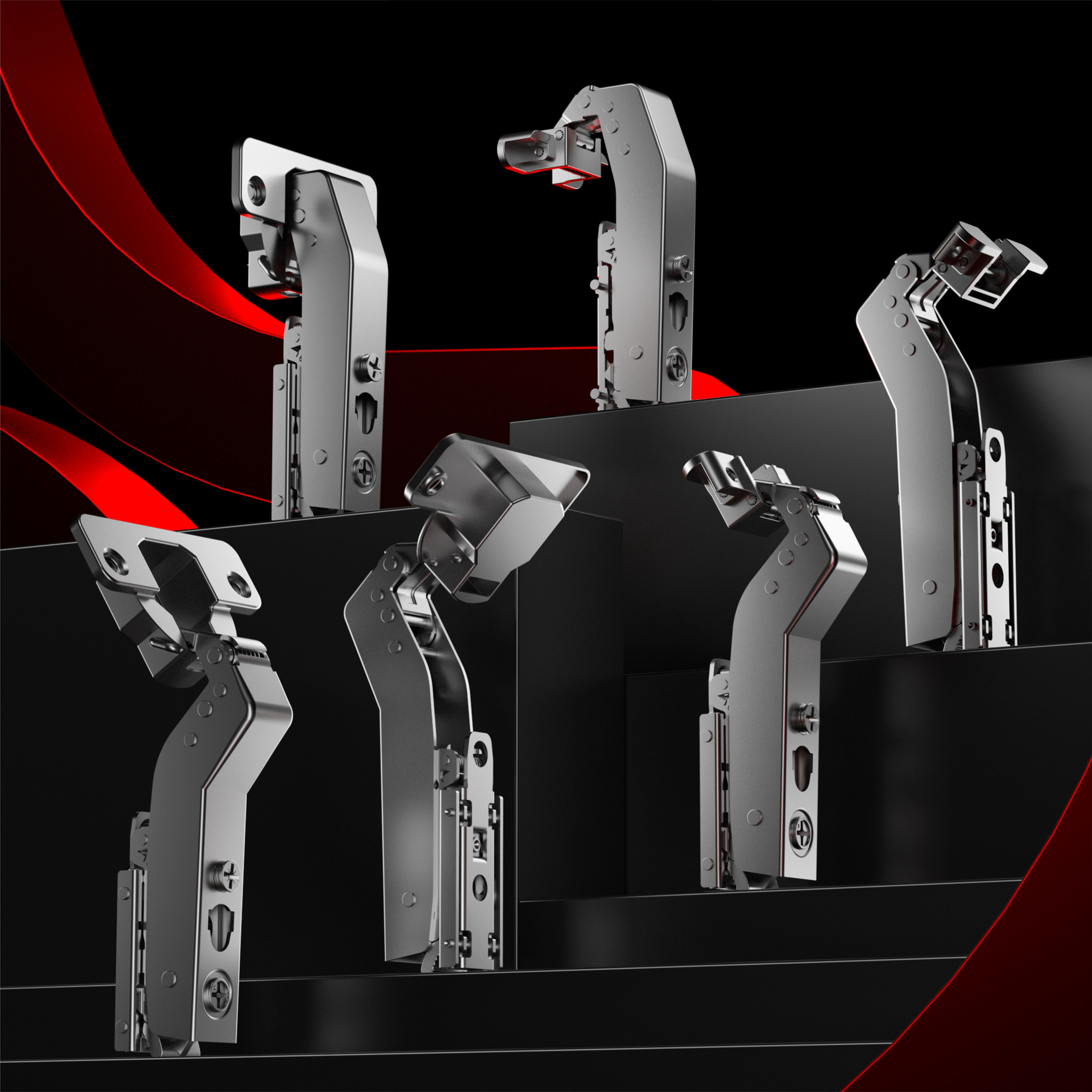

KEAX Xiangxing Hinge | MAXS 3.0 | T32 — Precision in Every Angle, Freedom in Every Move

30° 45° 90° Define a New Dimension of Connection — T32 & T32A

Eight Major Innovations

1.Compatible with thick and thin doors -suitable for a wider range of cabinet types.

2. Multiple opening angles available– 30°, 45°, and 90°options.

3. Three-way clip-on design – quick and flexible base installation and removal.

4. Integrated mini built-in damper – soft closing for a smoother, more comfortable experience.

5. Two-stage force design – extends cabinet lifespan.

6. Three-dimensional turbine adjustment– precise alignment for a neat and elegant cabinet appearance.

7. Tested to European standards – durable and quality assured.

8. Multiple base options available – one-hole, two-hole, or four-hole 3D adjustable bases.

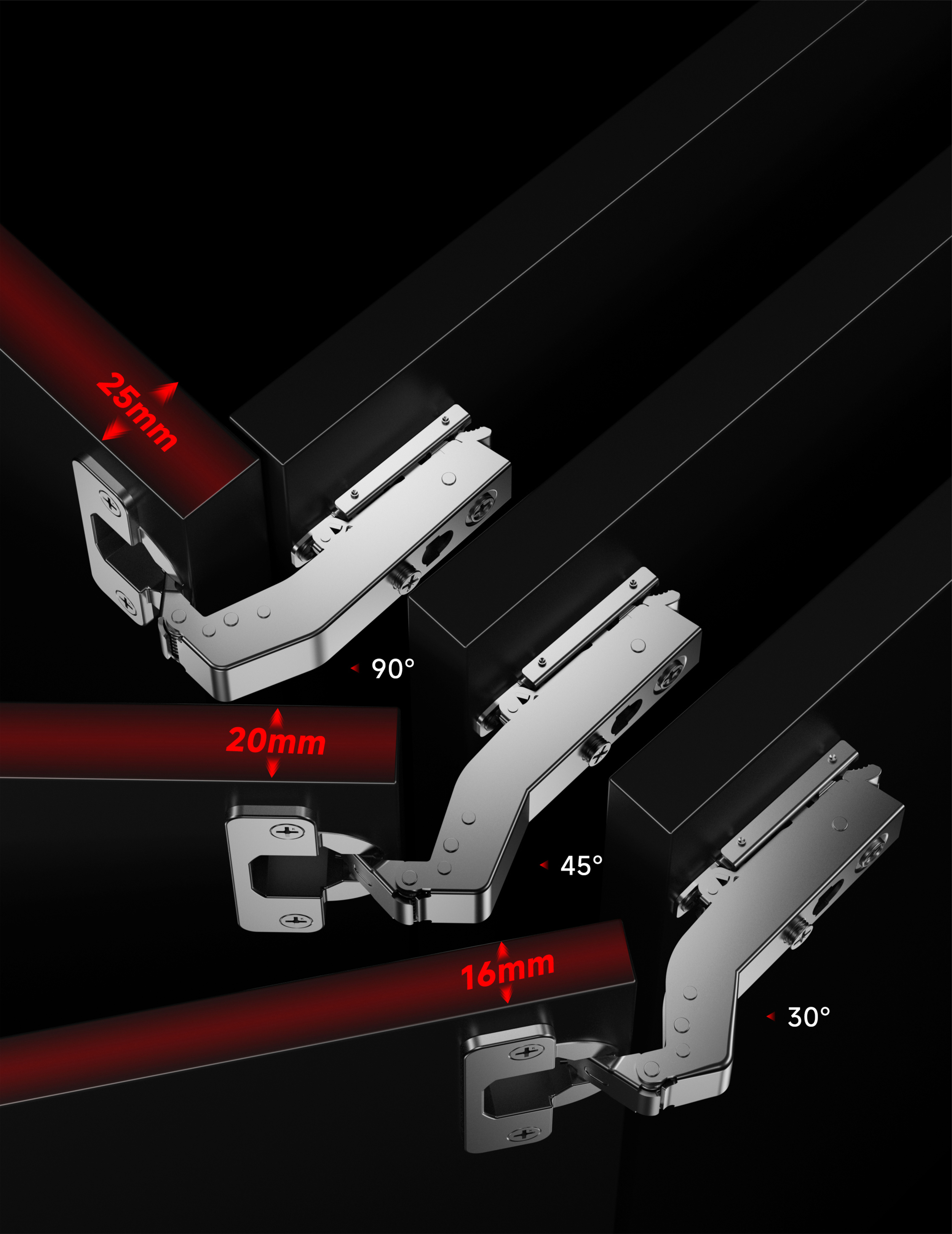

Special angle opening, compatible with both thick and thin doors – breaks the limitation of 16–25 mm door thickness, redefining cabinet design possibilities.

Multiple opening angles available – suitable for various cabinet applications with 30°, 45°, and 90° opening options.

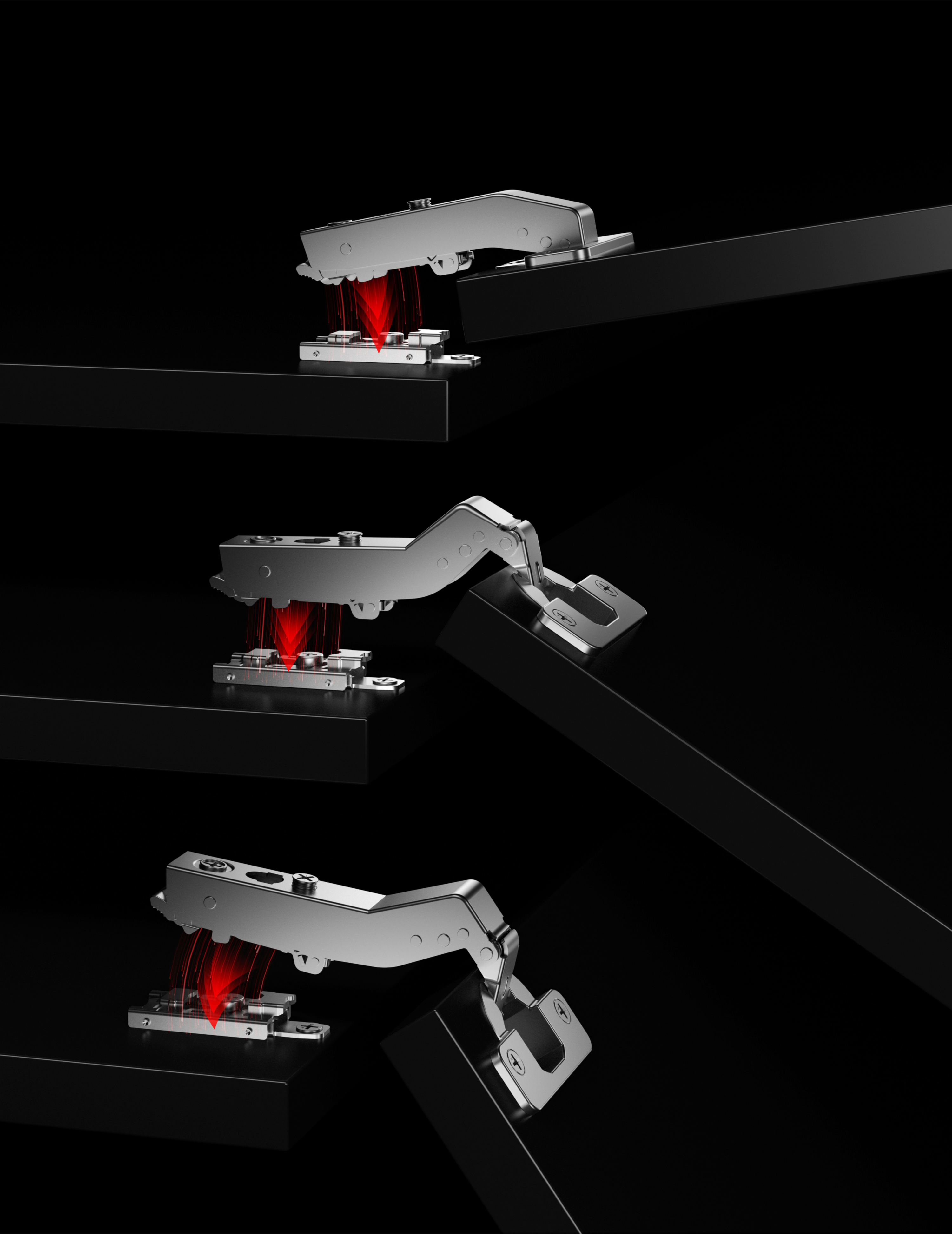

Clip-on quick-release design – three-way quick installation and removal; press to detach, secure in seconds.

Mini built-in damper – adapts to temperature differences, ensuring smooth and gentle closing for a more comfortable user experience.

Anti-collision two-stage force design – protects every cabinet door in your home, prevents impact damage, and significantly extends cabinet lifespan.

Soft-closing range: 30°–75°; free-stop range: 75°–100°; stable range: 100°–120° – smooth motion at every angle.

Three-dimensional turbine adjustment – faster and more precise alignment; 3D adjustment ensures accurate positioning and quicker installation.

    • Overlay adjustment: ±3 mm

    • Vertical adjustment: ±2 mm

    • Gap adjustment: ±3 mm

Tested to EN15570 European standard – 50,000 open-close cycles; passed 20 kg vertical overload and 60 N horizontal overload tests for proven durability and quality assurance.

Multiple base options for flexible installation – compatible with common cabinet types, offering greater adaptability and cost-effective choices.
